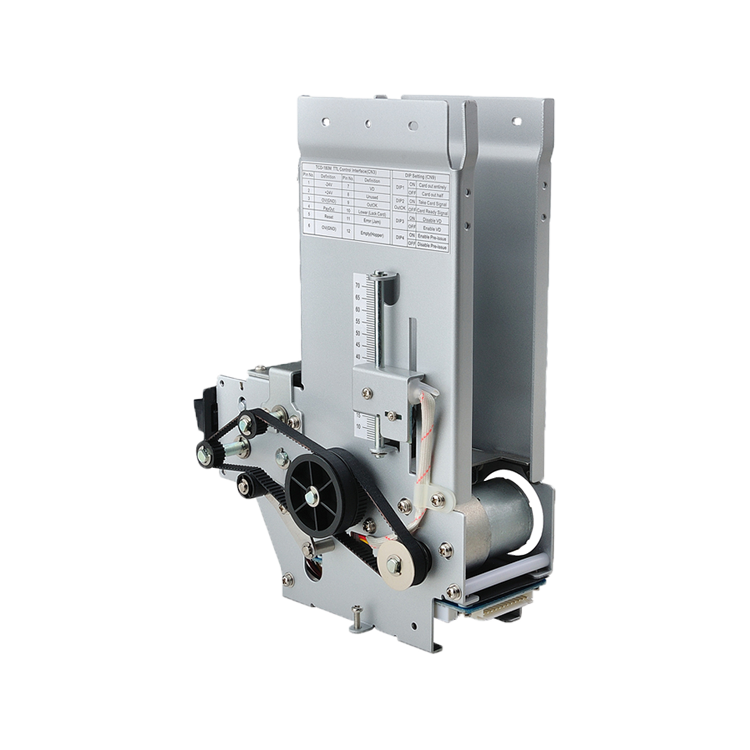

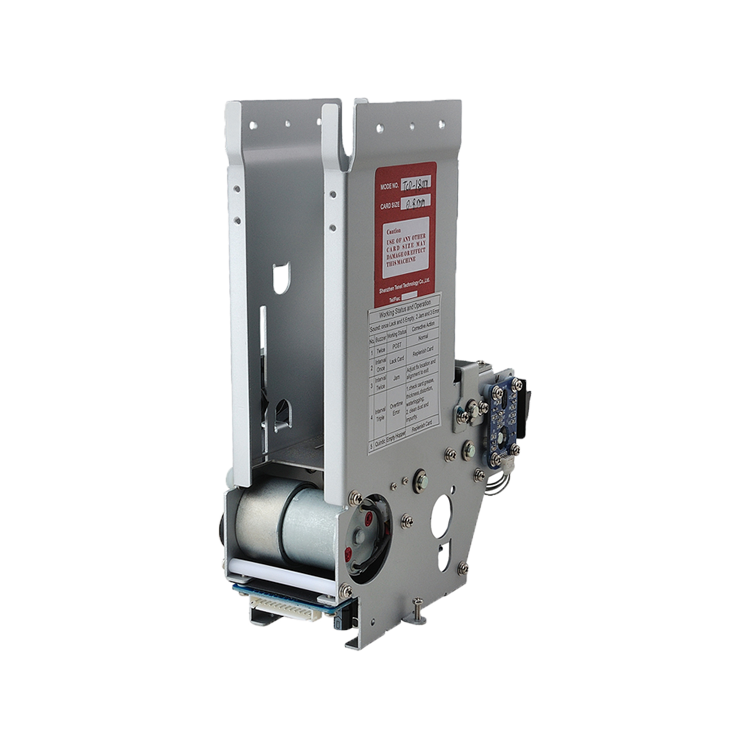

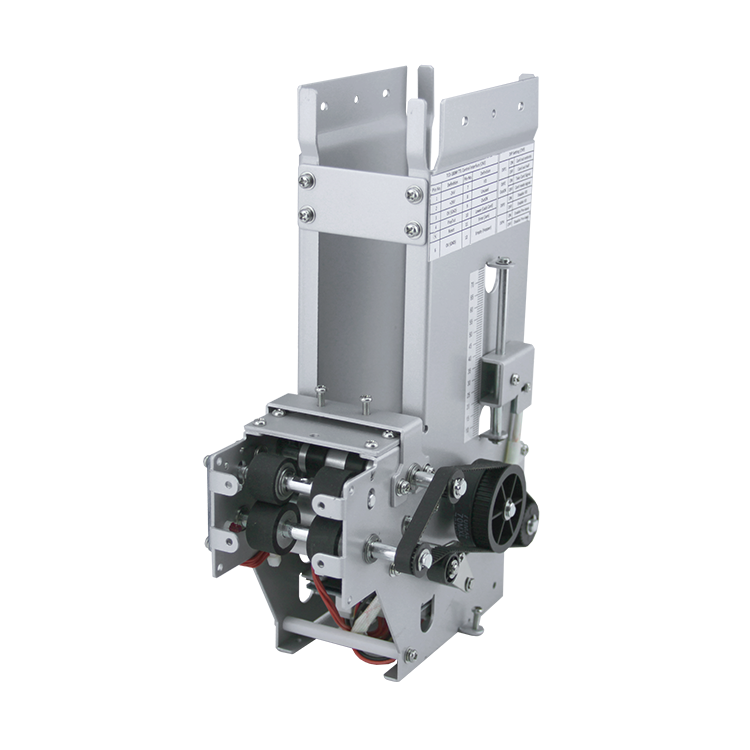

      TCD-180M Card Dispenser

      TCD-180M Card Dispenser has a single motor and a compact design for faster card dispensing. With its shorter card travel distance, it enhances card dispensing speed. Its smaller size makes it suitable for compact housing and enclosures. Featuring specially designed rubber rollers, it can handle various card types, adjustable from 0.3mm to 2.5mm in thickness. The card dispenser has a capacity of 150 cards, and you can expand it with an additional 100-card capacity storage.
      • 【这是一个产品详情】产品详情已自动绑定后台每篇产品的数据。拖动控件时请不要让任何控件重叠。请在后台产品管理直接设置好产品详情的内容样式，前台设计器不提供设置。
        • Model
          TCD-180M
        • Work Voltage
          DC 24V
        • Card Issuing Speed
          ≥ 0.5s / Card
        • Applicable Cards
          Paper & PVC Cards
        • Operating Temperature
          -30°C ~ 85°C
        • Control Interface
          RS232
        • Product Dimension
          158*83*228 mm
        • Applicable Card Thickness
          0.3 ~ 2.4 mm
        • Suggested Card Dimension
          85.5*54*0.8 mm
        • Card Capacity
          150 (0.8mm Card)
